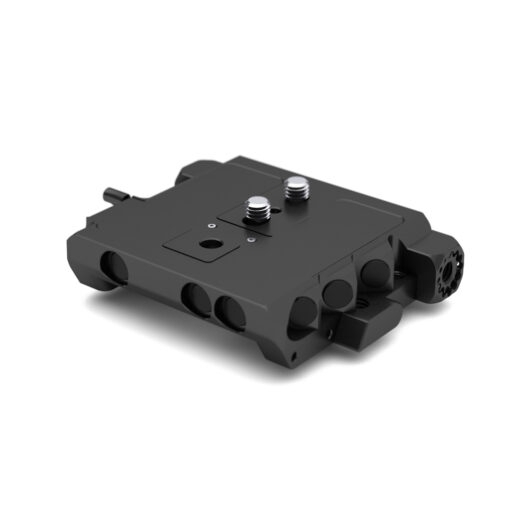

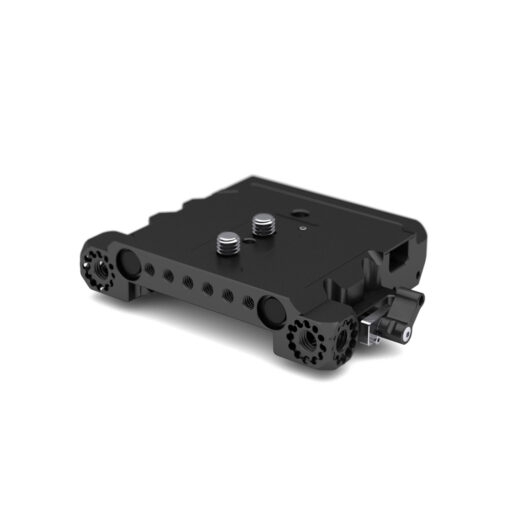

Swiss Cage SC Bottom Interface Plate RED V-RAPTO

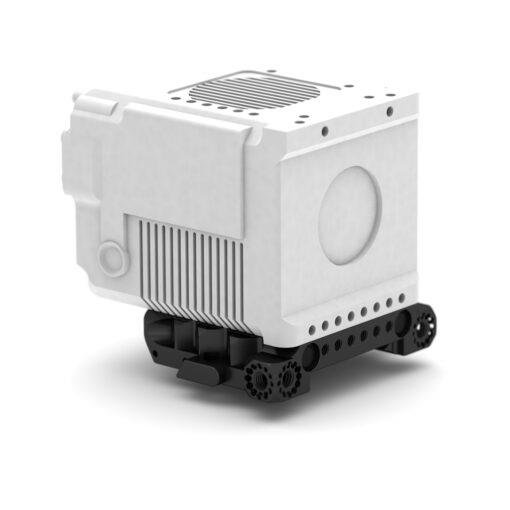

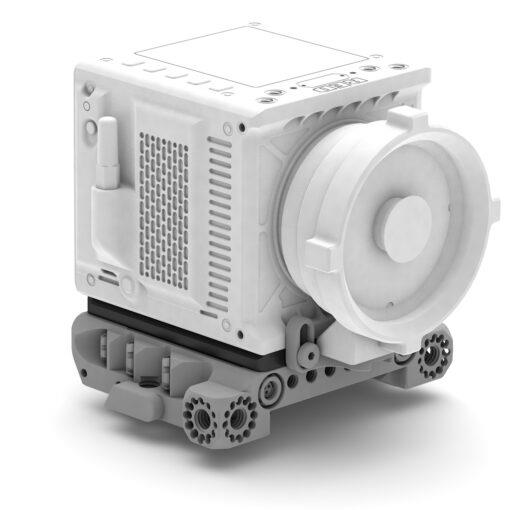

The low profile Bottom Interface Plate for the RED V-RAPTOR / KOMODO*. ARRI standard dove plates can easily be adjusted in fore/aft position allowing flexible use of Top Handles and/or accessories. The Bottom Interface Plate further offers 3/8? ARRI Arri-Locator-Pins mounting points with industry first 30° angle adjustment, several 1/4? and M4 mounting threads.

*requires SC Riser Plate Komodo



PACKAGE CONTENT
1x Bottom Plate
1x ¼" Mounting Screws
2x 3/8" Mounting Screws
1x M3 Allen Wrench
1x 3/16" Allen Wrench
1x M4 Clamp option Screw



TECH. SPECIFICATIONS
7x ARRI Arri-Locator-Pins mounts (with 30° mounting steps)
ARRI standard dovetail clamp
10x ¼" Threads
7x ?" Threads
4x ¼" Mounting Screws
7075 Aluminum / Black hard anodizing



Size: 105x130x 20mm
Weight: 215g
