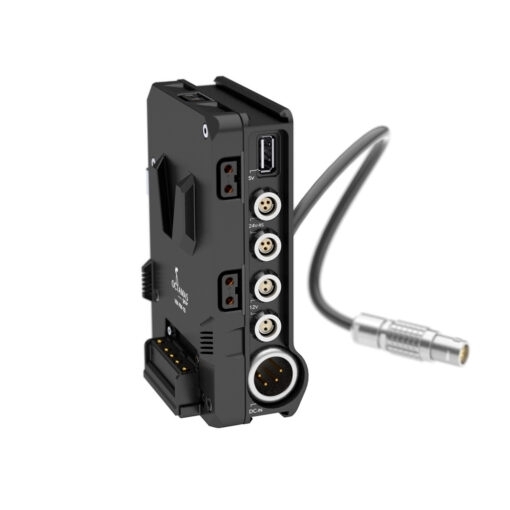

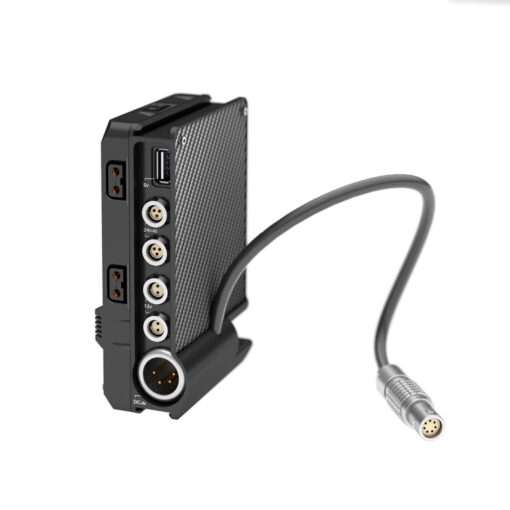

Swiss Cage Power Box V-Mount ARRI 8pin 12V

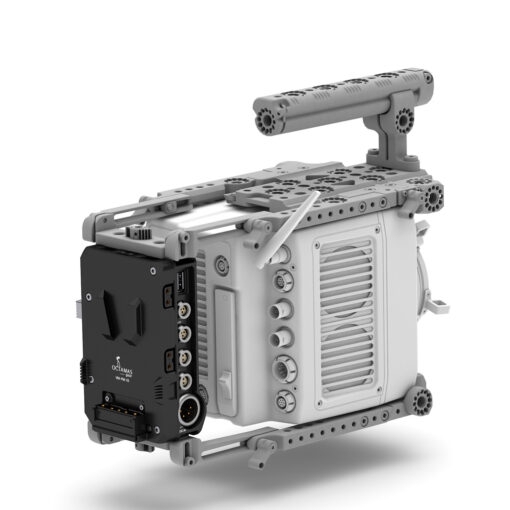

The OCTAMAS gear Power Box is a proven battery solution featuring various industry standard accessory power connectors. With ARRI 8pin 2B power cable and trigger remote RS ability (optional cable required) the Power Box also offers top/bottom mounting options for SWISS cage and 15mm LWS rods.

Connectors:

1x 8pin 2B DC-IN Camera Cable (ARRI)
1x 4pin XLR 12V DC-IN
2x 3pin 24V Fischer RS regulated power (combined_2.5 to 3 Amp) with RS Trigger Function implemented (optional cable required)
2x 2pin 0B AUX/PWR unregulated direct power from DC or Battery
3x D-Tap (V-Mount version) unregulated direct power from DC or Battery
1x USB 3 5V (1.5 to 2 Amp)

*XLR input is microprocessor controlled to prevent charge/discharge of onboard battery when external battery is connected.



PACKAGE CONTENT
1x Power Box V-Mount, ARRI 8pin 12V


TECH. SPECIFICATIONS
7075 Aluminum / Black hard anodizing


Size: 125x80x48mm
Weight: 430g


Mounting Option: 15mm Power Box Mount
PACKAGE CONTENT
1x 15mm Power Box Mount
2x M4 Thumbscrew
1x 3/8" Thumbscrew


TECH. SPECIFICATIONS
7075 Aluminum / Black hard anodizing


Size: 105x38x20mm
Weight: 60g
